Advanced optical diagnostics for combustion development at large two-stroke engines

Background

Alternative fuels such as methanol, ammonia as well as liquid (and gaseous) fuel substitutes with reduced CO₂ footprint are introduced to meet the targets of the IMO’s with regards to reducing GHG emission of the shipping industry. To enable further developments and optimization of large two-stroke combustion systems regarding reliable engine operation with these fuel types, the in-depth understanding of in-cylinder processes is a prerequisite.

The application of advanced optical diagnostical methods will provide important information of the underlying phenomena. Such measurement techniques provide highly valuable in-sights to facilitate improvements of engine efficiency.

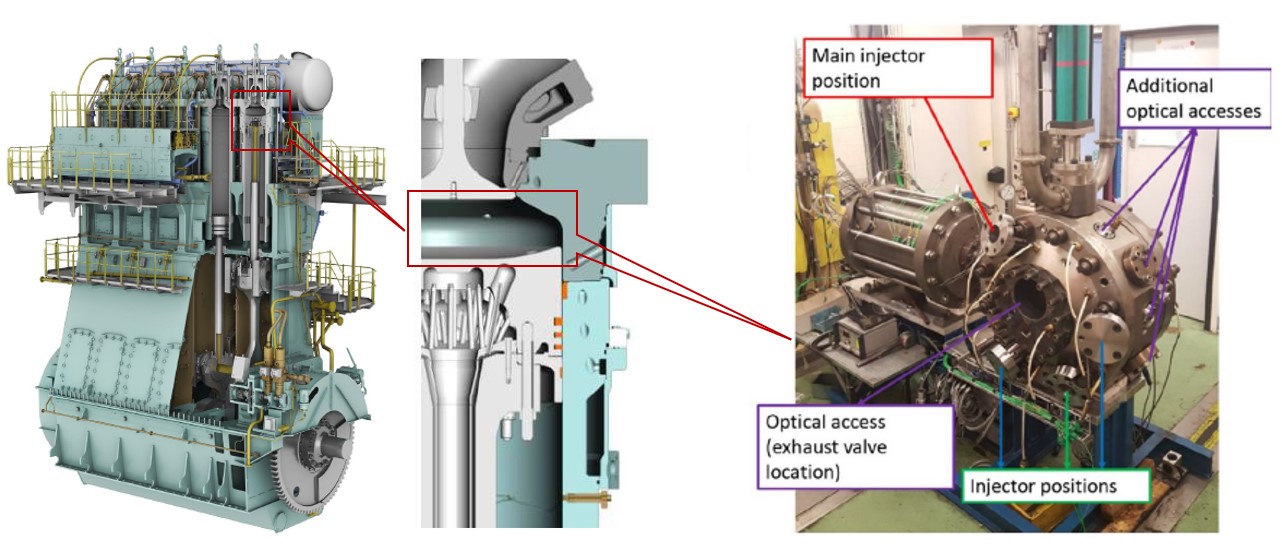

Fig.1: Schematic of an advanced experimental setup for optical diagnostic methods. (Spray Combustion Chamber, SCC @WinGD).

Objectives

Understanding the tribological and rheological behavior based on engine operating conditions, provides the possibility to redefine lubrication strategies towards lowest possible oil consumption and at the same time most reliable operating conditions. The method of ultrasonic reflectometry is deployed to determine the lubricant film thickness at the cylinder liner – piston ring interface during engine operation.

Results

Lubricant film thickness (OFT) is determined using a novel approach of ultrasound reflectometry. Detailed investigations with WinGD and a close cooperation with the University of Sheffield leads to a new method of a crank angle resolved determination of OFT during engine operation, which leads to a much better understanding of tribological and rheological effects at the cylinder liner – piston ring interface. Elaborated results provide the basis for the development of a detailed simulation model to support the development of future lubrication strategies.

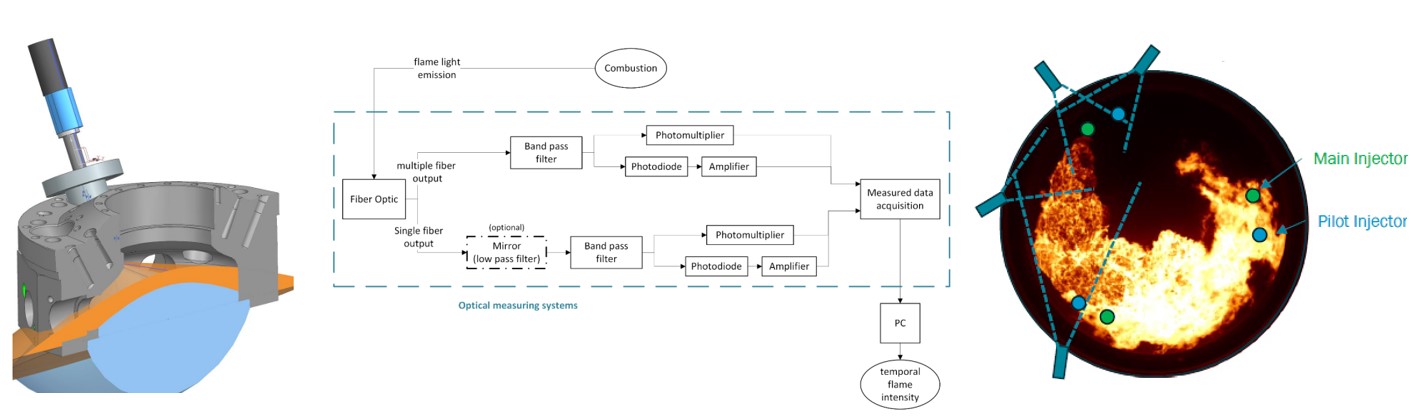

Fig.2: Methodological approach of the Combustion Analysis Tool.
